LDM240P-12500-C24

240W Class 2 Constant Voltage LED Driver
With 7 Year Warranty
105677

The LDM240P is a 240W, Class 2 Power Supply with 7 years warranty and High Power Factor Correction. It can be used in outdoor. It is UL listed and safely can be used in Dry, Wet and Damp locations.

I operates from 90-305V AC input voltage. It is designed and manufactured for LED Signage Modules, LED Strips or Outdoor Constant Voltage operated LED based products.

The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, over current short circuit and over temperature.

Waterproof (IP 68) and UL Dry / Damp / Wet Locations
Class 2 Power Supply
Active Power Factor Correction
High Efficiency up to 88%
Constant Voltage Output
Input Surge Protection 2KV Line to Line and 4KV Line to Earth
All-Around Protection: OVP / OCP / SCP / OTP
7 Years Product Warranty
Order Code Model Number Output Voltage Input Voltage Output Current Max Output Power Typical Efficiency PFC
105677 LDM240P-12500-C24 12V DC 90-305V 5A x 4 240W >93% >0,95

Input Specifications

Min Max
Input Voltage 90V AC 305V AC
Input Frequency 47Hz 63Hz
Leakage Current < 0,75mA
Input AC Current 0.8A
Inrush Current < 70A
Power Factor 0.95
THD < 20%

Output Specifications

Min Max
Output Voltage 11,4V 12,6V
Output Current 5A
Output Voltage Tolerance -5% +5%
Ripple And Noise 2% Vo
Output Overshoot 10%
Line Regulation (+-)%5
Load Regulation (+-)%5
Turn on Delay Time 1,5s
Temperature Coefficient 0.02% Celcius

General Specifications

Min Max
Efficiency at 220Vac Input Vo=12V 90% 92%
Efficiency at 110Vac Input Vo=12V 91% 93%
No Load Power Dissipation 1W
MTBF 50.000 Hours
Lifetime 60.000 Hours
Operating Case Temperature -30 Celcius +30 Celcius
Storage Temperature -40 Celcius +85 Celcius

Standards

UL / cUL CCN: UYMR2/UYMR8 UL8750 FCC CLASS 2 CE ENEC05 CB
Others EN 55015- EN 61000 - EN 61547

Packaging Information

Inner Box Dimensions 12" x 3,94" x 1,77"
Outter Box Dimensions 20,26" x 12,6" x 4,33"
Quantity Box 10pcs
Weight Box 30,7 Lbs

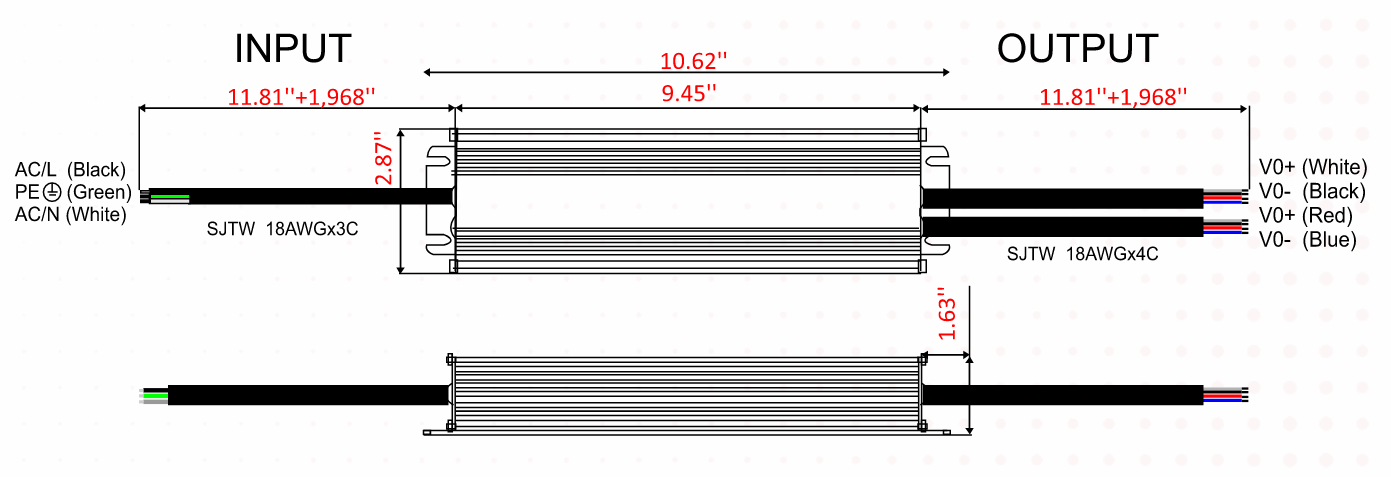

Technical Details
