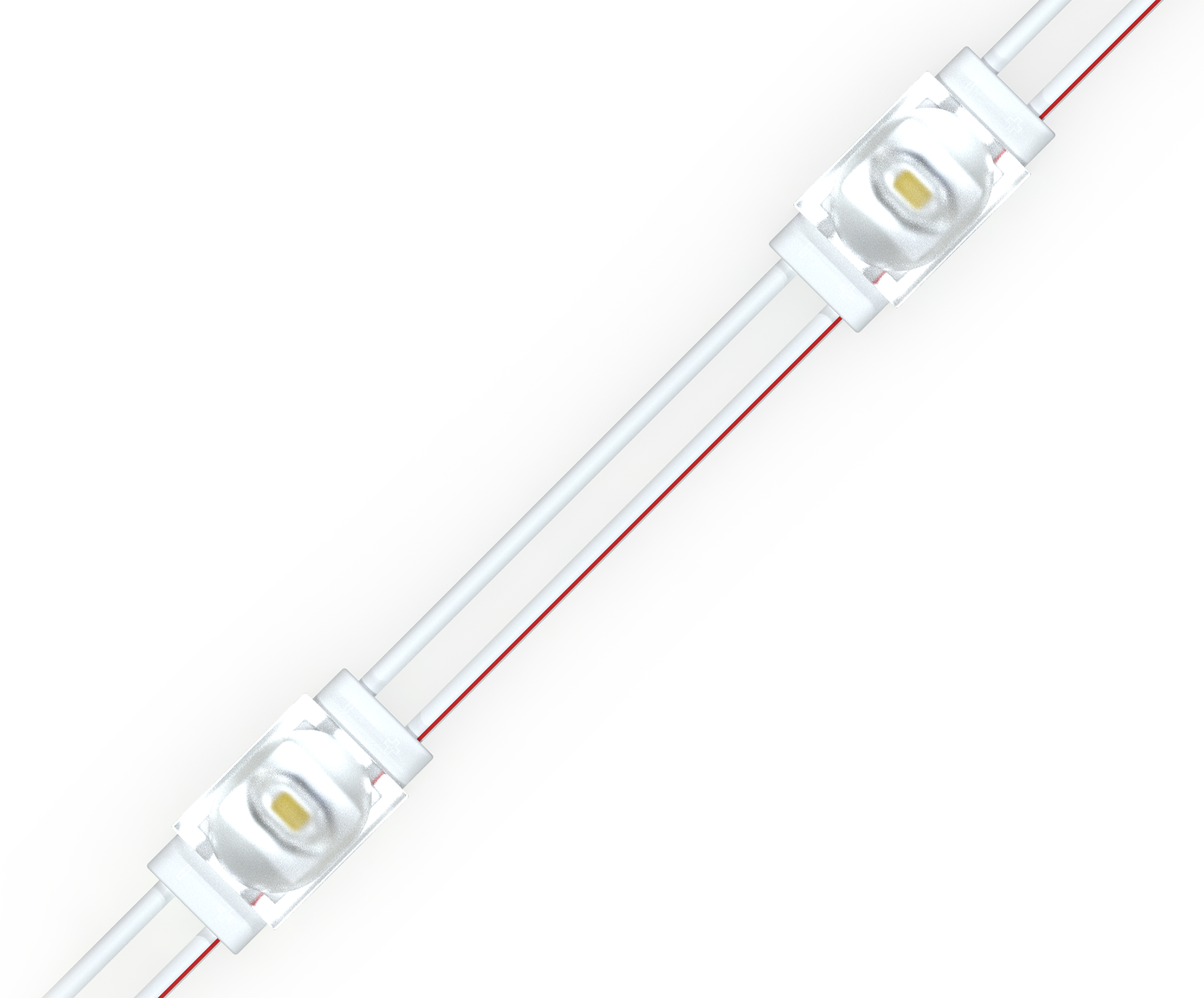

TMT Tiny

For extra small and thin channel letters Up to 114 Lm/W

The TMT LEDs Silver Series Tiny LED module is designed for channel letter with a narrow stroke width. With its small footprint, the Tiny module fits in strokes as narrow as 0.5” with clear light dispersion.

It features the same CrystaLens optics and has a 170° x 130° wide viewing angle that expands its coverage evenly across the face requiring fewer modules per letter than other comparable products in the market.

Features

  • Color options available
  • 41 lumens per module
  • Very small footprint 0.334” x 0.629”
  • Good for narrow applications (as small as 0.5”)
  • Up to 114 lumens per watt
  • Ideal for 1.5” - 3” Deep applications

Applications

  • Ideal for tiny channel letters
  • Ideal for any applicatıon requiring small footprint
  • Excellent for halo lighting on backplate applications

Downloads

TMT 1 Datasheet

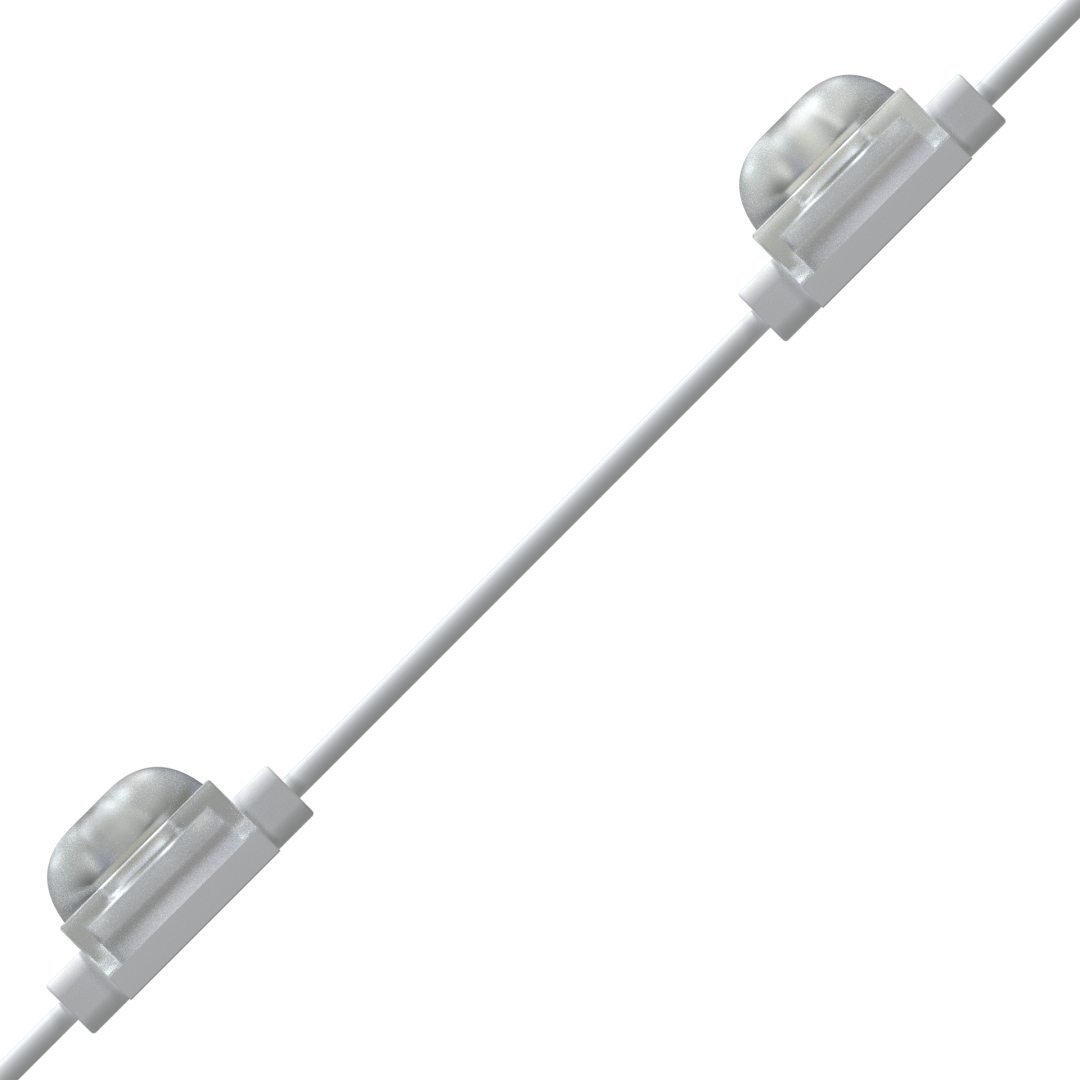

tiny-capraz

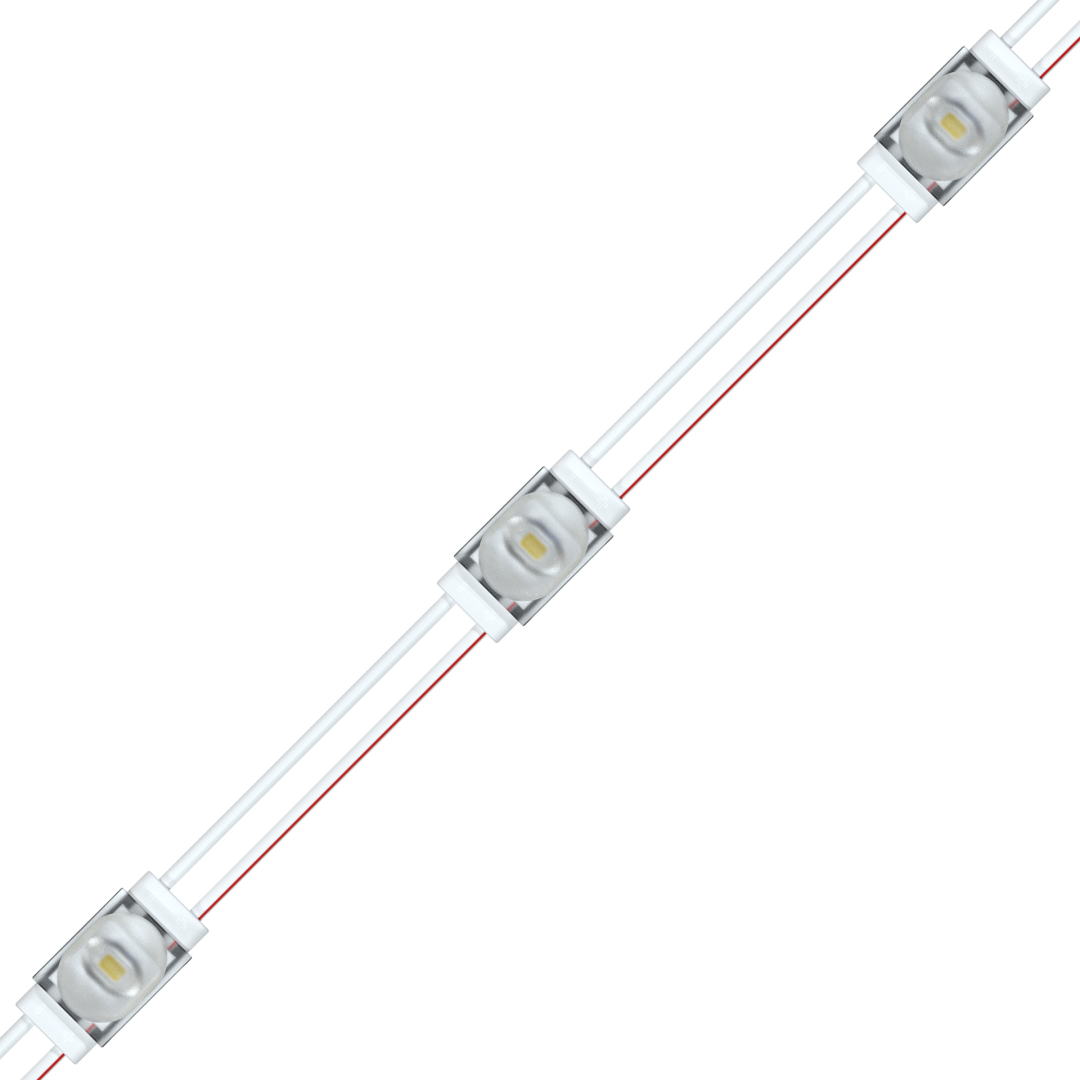

tiny

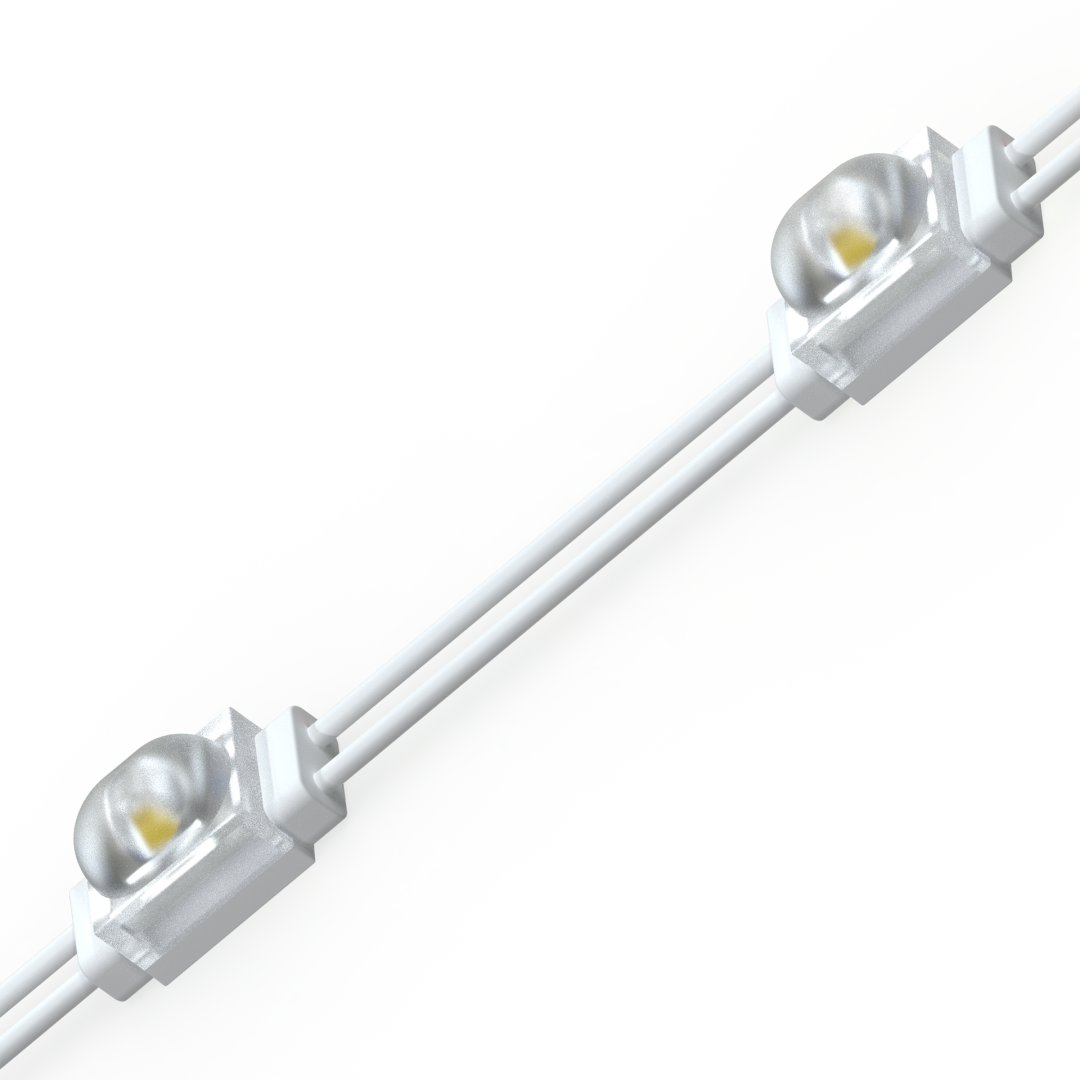

tiny-2
TMT TINY
FOR MINIMAL / SMALL CHANNEL LETTERS
UP TO
5 YEAR
WARRANTY
UP TO
114 Lm
PER WATT
12 V
POWER OPTIONS
170x130°
BEAM ANGLE
TMT Tiny

Technical Specifications

Operating Temperature:
-22°F to +140°F
Body Material:
Case: ABS | Optics: Optical PC
Finishing:
Ultrasonic Welding
Lifetime (Tm21):
>60,000 Hours
Adhesive Tape:
3M Foam
Strip Size:
100 Modules / Strip

Product Models

Watt CCT / Color Order Code Input Lumen Efficiency C2C 60W PS Load Module / Foot Lumen / Foot Watt / Foot
0.36 W 10,000K TMT-101171 12V 41 LM 114 LM/W 2" 141 PCS 6 PCS 246 LM 2.16 W
0.36 W 6,500K TMT-101169 12V 41 LM 114 LM/W 2" 141 PCS 6 PCS 246 LM 2.16 W
0.36 W 4,000K TMT-101168 12V 38 LM 106 LM/W 2" 141 PCS 6 PCS 228 LM 2.16 W
0.36 W 3,000K TMT-101057 12V 38 LM 106 LM/W 2" 141 PCS 6 PCS 228 LM 2.16 W
0.36 W RED TMT-101170 12V 11 LM 31 LM/W 2" 141 PCS 6 PCS 66 LM 2.16 W
0.36 W GREEN TMT-102490 12V 6 LM 17 LM/W 2" 141 PCS 6 PCS 36 LM 2.16 W
0.36 W BLUE TMT-101172 12V 15 LM 42 LM/W 2" 141 PCS 6 PCS 90 LM 2.16 W
